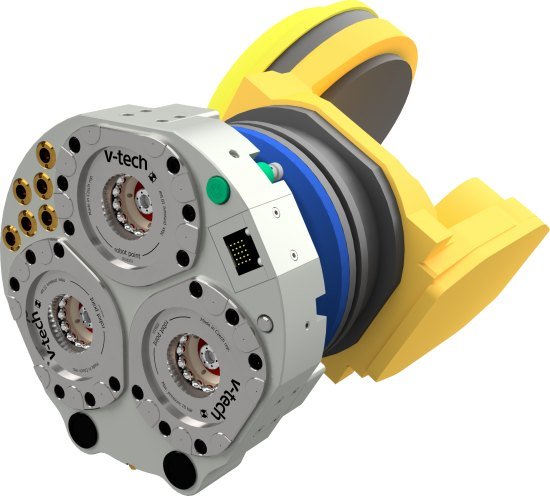

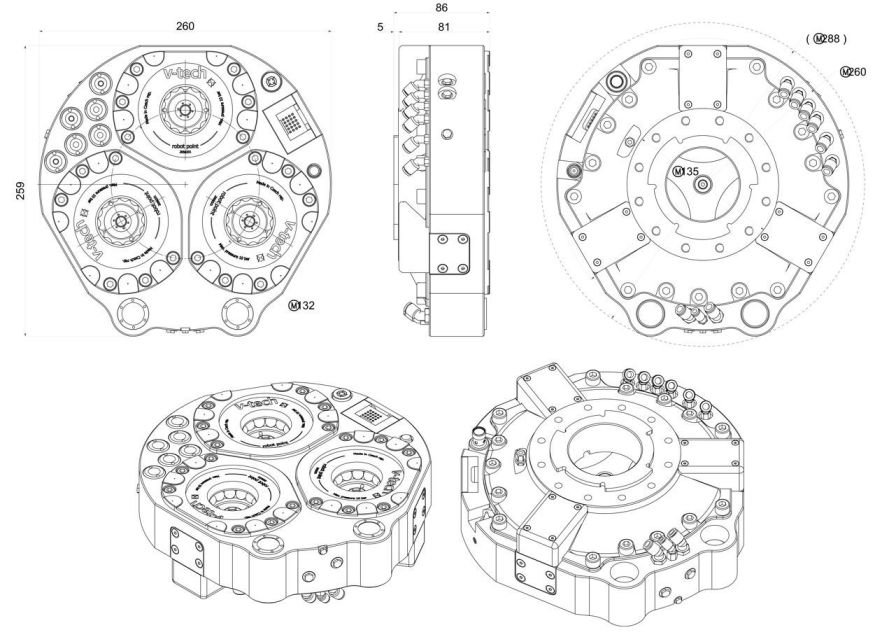

ROB-T 3H Automatic Interface for Robotic CNC Operation

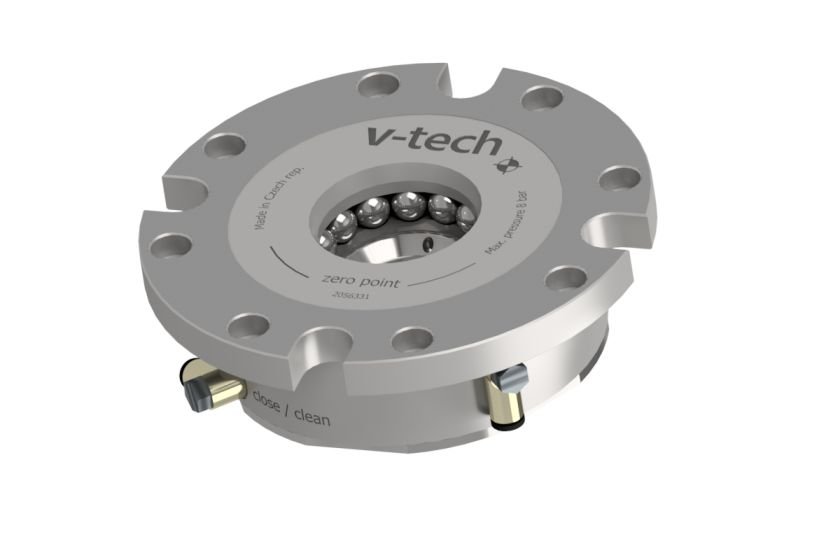

Automation in manufacturing is no longer a matter of the future, but a necessity. ROB-T 3H represents a highly precise and robust automatic interface between an industrial robot and a replaceable adapter equipped with three NES-t 135 clamping units designed for high load applications.

Robot Point ensures automated operation of CNC machining centers using an industrial robot or manipulator. It can be deployed as a docking system for fast and automatic exchange of gripping and technological heads, or as a pallet loading system. As a result, it significantly increases production flexibility and enables efficient operation even without direct operator presence.

The solution also includes a docking magazine for interchangeable adapters. It is supplied as standard in three positions with adapter seats equipped with position sensors. The magazine can be modularly extended according to specific operational requirements.

Robust Design and Intelligent Control

ROB-T 3H is designed for demanding industrial environments. It offers a high load moment and reliable transmission of media and signals. Pneumatic actuation and integrated sensor technology, including an RFID read head for adapter identification, are standard features.

The interface enables the connection of hydraulics, pneumatics, and electrical signals, making it a comprehensive solution for automated workstations. Thanks to precise mechanics and a stable construction, repeatability and safe operation are ensured even under long-term load.

A Solution Tailored to Your Application

At v-tech s.r.o., we focus on practical usability. ROB-T 3H can be customized based on specific customer requirements to fully match the given robotic application, machine type, and production process.If you are looking for an efficient and reliable way to integrate robotic handling with CNC machining, ROB-T 3H is ready to become part of your automated cell.

For more technical information, visit 🌐 ROB-T 3H
📞 Contact us and we will design a solution tailored precisely to your operation.
